PVC Fittings Online  |  SKU: AMU1426WF

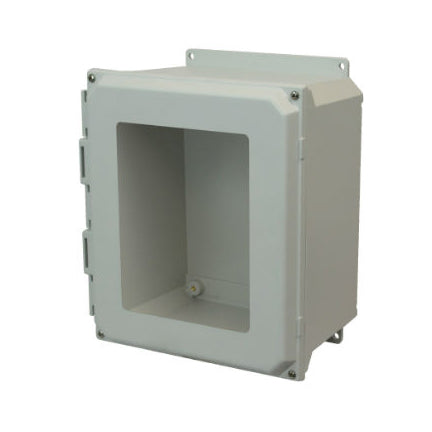

AMU1426WF 14x12x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window Flange Mount

AMU Fiberglass Enclosure Lift-Off Screw Cover Window - Part: AMU1426WF

Allied Moulded enclosures have a 4-6 week lead time.

$334.21
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Found in components both indoor and outdoor AMU series enclosures were designed to insulate and protect electronic and electrical controls and components. Easy to mount to a wall, pole or machine with its multi-mounting capability. Especially well suited for extreme temperatures and harsh climates.

Additional Info
Related Documents: Not Available
Part Number: AMU1426WF
Box Dimensions: 14.05" (H), 12.27" (W), 6" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339952497
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
