AMU1648CC

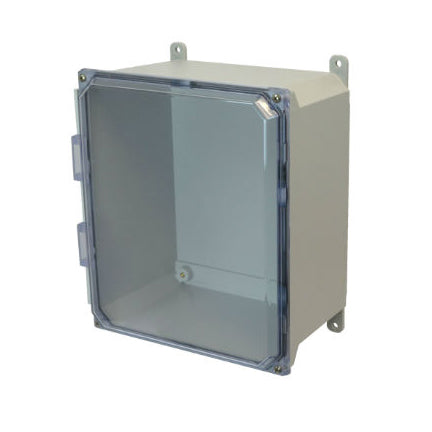

AMU1648CC 16x14x8 NEMA 4X Fiberglass Enclosure w/ Clear Lift-Off Screw Cover Foot Mount
AMU Fiberglass Enclosure CLEAR Lift-Off Screw Cover - Part: AMU1648CC
Allied Moulded enclosures have a 4-6 week lead time.
$232.35
Unit price
/
Unavailable
Shipping calculated at checkout.
AMU1648CC 16x14x8 NEMA 4X Fiberglass Enclosure w/ Clear Lift-Off Screw Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actual part may differ slightly from image shown.
Description
Description
Electrical enclosures are designed to insulate and protect electrical and electronic controls, instruments, and components for both indoor and outdoor use. These enclosures are durable and have a long-term life cycle. Used for industrial control equipment in ordinary locations.
Additional Info
Additional Info
Related Documents: Not Available
Part Number: AMU1648CC
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959700
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
