PVC Fittings Online  |  SKU: AMU1648CCH

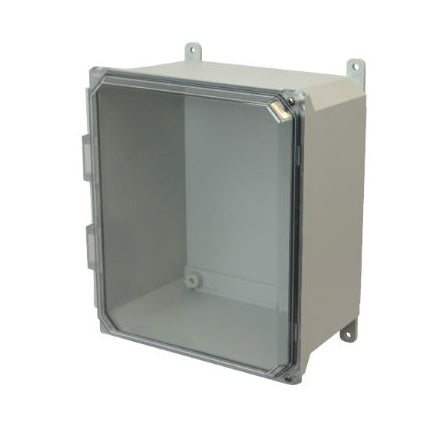

AMU1648CCH 16x14x8 NEMA 4X Fiberglass Enclosure w/ Clear Hinged Screw Cover Foot Mount

AMU Fiberglass Enclosure CLEAR Hinged Screw Cover - Part: AMU1648CCH

Allied Moulded enclosures have a 4-6 week lead time.

$244.71
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover make up this tough Allied electrical enclosure. Well suited for extreme temperatures and corrosive environments Can be easily mounted to a wall, pole or machine.

Additional Info
Related Documents: Not Available
Part Number: AMU1648CCH
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959731
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
