Actual part may differ slightly from image shown.

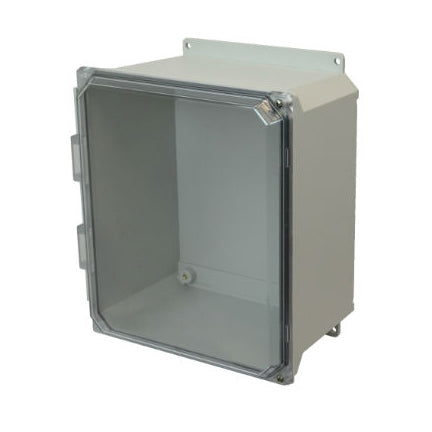

AMU1648CCHF 16x14x8 NEMA 4X Fiberglass Enclosure w/ Clear Hinged Screw Cover Flange Mount

Allied creates durable enclosures that can with stand extreme heat and corrosive environments Protecting from dirt, water, oil and much more these enclosures have a long term use. This series of Allied enclosures has multi-mounting capabilities.

Additional Info

Related Documents: Not Available
Size in Inches: 16 inch
Part Number: AMU1648CCHF
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959861
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AMU1648CCHF

AMU1648CCHF 16x14x8 NEMA 4X Fiberglass Enclosure w/ Clear Hinged Screw Cover Flange Mount

AMU Fiberglass Enclosure CLEAR Hinged Screw Cover - Part: AMU1648CCHF

Allied Moulded enclosures have a 4-6 week lead time.

$254.06
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AMU Fiberglass Enclosure CLEAR Hinged Screw Cover - Part: AMU1648CCHF

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Allied creates durable enclosures that can with stand extreme heat and corrosive environments Protecting from dirt, water, oil and much more these enclosures have a long term use. This series of Allied enclosures has multi-mounting capabilities.

Additional Info
Related Documents: Not Available
Size in Inches: 16 inch
Part Number: AMU1648CCHF
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959861
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
