PVC Fittings Online  |  SKU: AMU1648CCTF

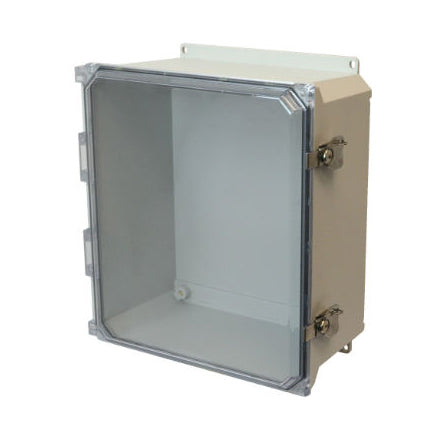

AMU1648CCTF 16x14x8 NEMA 4X Fiberglass Enclosure w/ Twist Latch Clear Hinged Cover Flange Mount

AMU Fiberglass Enclosure Twist Latch CLEAR Hinged Cover - Part: AMU1648CCTF

Allied Moulded enclosures have a 4-6 week lead time.

$285.66
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Environments and temperatures of the most extreme this electrical enclosure is well suited for. Protecting against sleet, oil,dirt, dust, water and more Allied's enclosures are durable. With multi-mounting capabilities these enclosures are easy to mount.

Additional Info
Related Documents: Not Available
Part Number: AMU1648CCTF
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959922
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
