PVC Fittings Online  |  SKU: AMU1648F

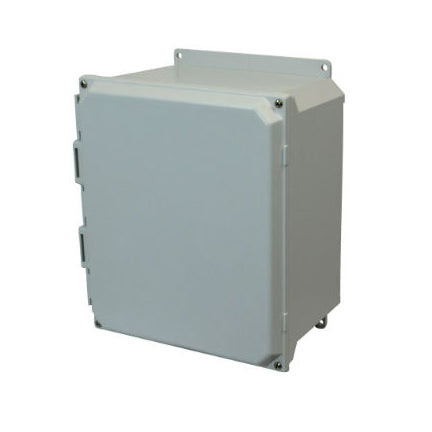

AMU1648F 16x14x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Flange Mount

AMU Fiberglass Enclosure Lift-Off Screw Cover - Part: AMU1648F

Allied Moulded enclosures have a 4-6 week lead time.

$214.68
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
The application of Allied's electrical boxes is to protect and enclose electrical and electronic controls for both indoor and outdoor use. These boxes are easily modified for your convenience They are light weight and easy to mount with Ultraline's multi-mounting capabilities.

Additional Info
Related Documents: Not Available
Part Number: AMU1648F
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959823
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
