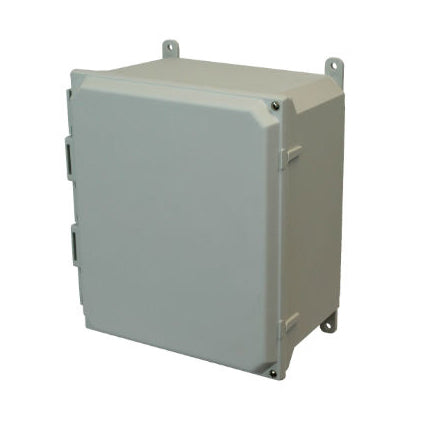

AMU1648H 16x14x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Foot Mount
300 Series stainless steel external hardware (hinges, latches and fasteners) for Allied enclosures are strong and durable. They have a greater life cycle than steel. Great for both indoor and outdoor applications.
Additional Info
Related Documents: Not Available
Size in Inches: 16 inch
Part Number: AMU1648H
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959724
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
PVC Fittings Online | SKU:
AMU1648H
AMU1648H 16x14x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Foot Mount
AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU1648H
Allied Moulded enclosures have a 4-6 week lead time.
$223.49
Unit price
/
Unavailable
Shipping calculated at checkout.
AMU1648H 16x14x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU1648H
Allied Moulded enclosures have a 4-6 week lead time.
Description
Description
300 Series stainless steel external hardware (hinges, latches and fasteners) for Allied enclosures are strong and durable. They have a greater life cycle than steel. Great for both indoor and outdoor applications.
Additional Info
Additional Info
Related Documents: Not Available
Size in Inches: 16 inch
Part Number: AMU1648H
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959724
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
