Actual part may differ slightly from image shown.

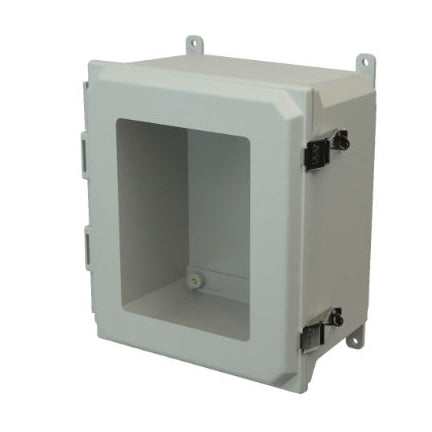

AMU1648LW 16x14x8 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Foot Mount

Customizing Allied Moulded's enclosures is easy. They can be punched, drilled and sawed at a pretty easy convenience A clear polycarbonate cover option is also available for applications that need to be both visible and protected from the elements.

Additional Info

Related Documents: Not Available
Size in Inches: 16 inch
Part Number: AMU1648LW
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959779
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AMU1648LW

AMU1648LW 16x14x8 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU1648LW

Allied Moulded enclosures have a 4-6 week lead time.

$406.88
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU1648LW

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Customizing Allied Moulded's enclosures is easy. They can be punched, drilled and sawed at a pretty easy convenience A clear polycarbonate cover option is also available for applications that need to be both visible and protected from the elements.

Additional Info
Related Documents: Not Available
Size in Inches: 16 inch
Part Number: AMU1648LW
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959779
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
