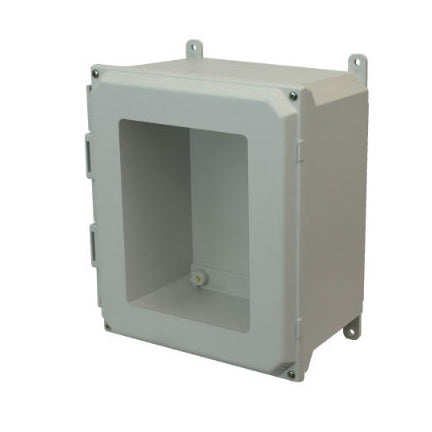

AMU1648W 16x14x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window Foot Mount

AMU Fiberglass Enclosure Lift-Off Screw Cover Window AMU1648W

Allied Moulded enclosures have a 4-6 week lead time.

$366.84
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
The AMU Series enclosures have a few additional features including multi-mounting capability, and field installable hing front panel accessories. The window cover for this wall mount is polycarbonate. Both non-corrosive and non-conductive this enclosure can withstand harsh weather.

Additional Info
Related Documents: Not Available
Part Number: AMU1648W
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959717
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
