PVC Fittings Online  |  SKU: AMU1648WF

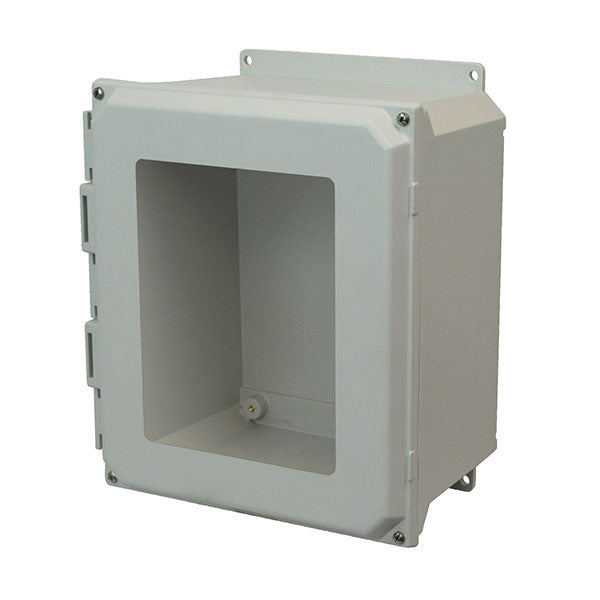

AMU1648WF 16x14x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window Flange Mount

AMU Fiberglass Enclosure Lift-Off Screw Cover Window - Part: AMU1648WF

Allied Moulded enclosures have a 4-6 week lead time.

$376.91
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This enclosure has a lift off 4-screw window cover and can easily mount to a pole, wall, or machine. Well suited for extreme temperatures and corrosive environments These boxes will protect against rain,sleet, wind or dirt.

Additional Info
Related Documents: Not Available
Part Number: AMU1648WF
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959847
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
