PVC Fittings Online | SKU: AMU1860H

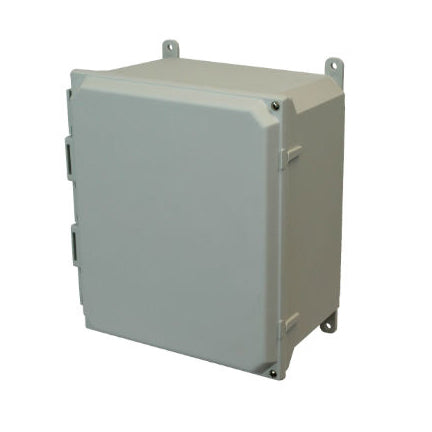

AMU1860H 18x16x10 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Foot Mount

Name: AMU1860H 18x16x10 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Foot Mount
Brand: PVC Fittings Online
SKU: AMU1860H
Price: 322.93 USD
Availability: InStock

AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU1860H

Allied Moulded enclosures have a 4-6 week lead time.

$322.93

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

The most extreme weather and corrosive environments are what the fiberglass reinforced polyester enclosure protect against. Being multi-mounting capable and light weight this box can be hung vertically or horizontally. 300 series stainless steel screws and hinges.

Additional Info

Related Documents: Not Available

Part Number: AMU1860H

Box Dimensions: 18.12" (H), 16.34" (W), 9.94" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 14

UPC Code: 85339962021

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
