PVC Fittings Online  |  SKU: AMU1860HF

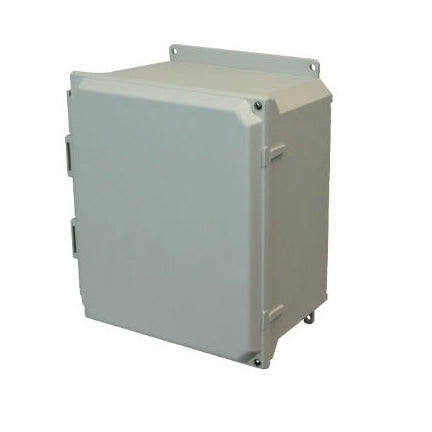

AMU1860HF 18x16x10 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Flange Mount

AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU1860HF

Allied Moulded enclosures have a 4-6 week lead time.

$331.78
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied's enclosures are great for indoor and outdoor applications. Protecting against extreme weather conditions and corrosive environments This enclosure is able to be custom modified.

Additional Info
Related Documents: Not Available
Part Number: AMU1860HF
Box Dimensions: 18.12" (H), 16.34" (W), 9.94" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339962120
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
