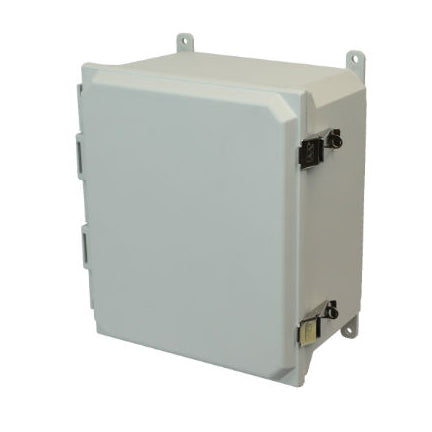

AMU1860L 18x16x10 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover - Part: AMU1860L

Allied Moulded enclosures have a 4-6 week lead time.

$351.79
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
The modern exterior design of the AMU series is the flush cover-to-base contour which many prefer. Ultraline is the ultimate in fiberglass enclosures. Great for both indoor and outdoor applications.

Additional Info
Related Documents: Not Available
Part Number: AMU1860L
Box Dimensions: 18.12" (H), 16.34" (W), 9.94" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339962045
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
