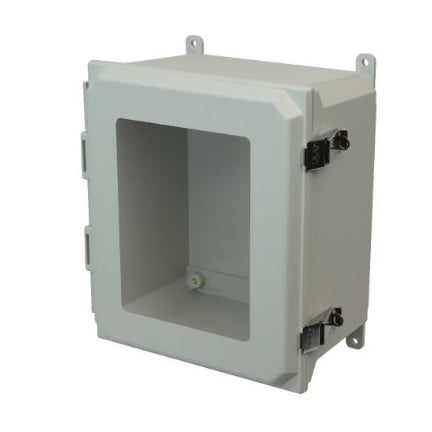

AMU1860LW 18x16x10 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Foot Mount

Allied's enclosures are UV stabilized for outdoor use. This enclosure has a metal snap hinged window cover. Protect against wind,dirt, dust and water. Easy to mount on a pole,wall or machine.

Additional Info

Related Documents: Not Available
Size in Inches: 18 inch
Part Number: AMU1860LW
Box Dimensions: 18.12" (H), 16.34" (W), 9.94" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339962052
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AMU1860LW

AMU1860LW 18x16x10 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU1860LW

Allied Moulded enclosures have a 4-6 week lead time.

$509.39
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU1860LW

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Allied's enclosures are UV stabilized for outdoor use. This enclosure has a metal snap hinged window cover. Protect against wind,dirt, dust and water. Easy to mount on a pole,wall or machine.

Additional Info
Related Documents: Not Available
Size in Inches: 18 inch
Part Number: AMU1860LW
Box Dimensions: 18.12" (H), 16.34" (W), 9.94" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339962052
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
