PVC Fittings Online  |  SKU: AMU1860LWF

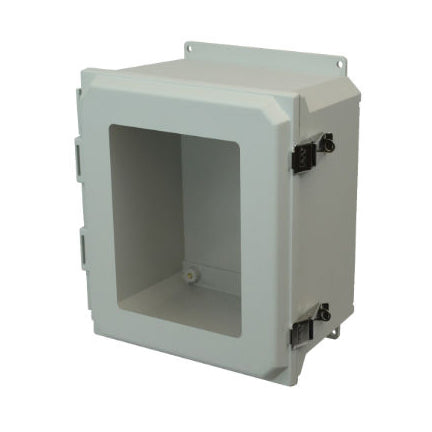

AMU1860LWF 18x16x10 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Flange Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU1860LWF

Allied Moulded enclosures have a 4-6 week lead time.

$515.75
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
With mounting capabilities the AMU series can be mounted vertically or horizontally. Protecting against sleet, wind ,dirt and other things these enclosures are durable and have a long term life cycle. Great for both indoor and outdoor applications.

Additional Info
Related Documents: Not Available
Part Number: AMU1860LWF
Box Dimensions: 18.12" (H), 16.34" (W), 9.94" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339962151
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66. RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
