PVC Fittings Online  |  SKU: AMU1860TWF

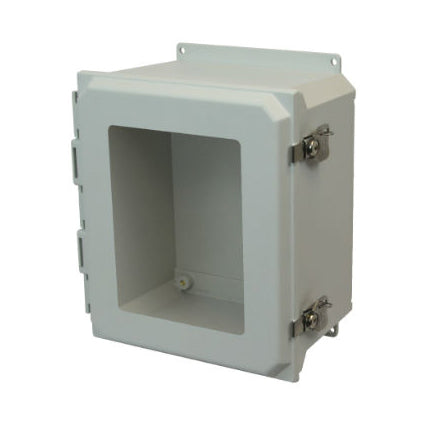

AMU1860TWF 16x14x8 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Window Flange Mount

AMU Fiberglass Enclosure Twist Latch Hinged Cover Window - Part: AMU1860TWF

Allied Moulded enclosures have a 4-6 week lead time.

$515.75
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied's AUM series electrical enclosures are not only the newest enclosures developed but they have a modern exterior design in a flush cover-to-base contour. Great for both indoor and outdoor applications. Easy to mount.

Additional Info
Related Documents: Not Available
Part Number: AMU1860TWF
Box Dimensions: 18.12" (H), 16.34" (W), 9.94" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339962175
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
