Actual part may differ slightly from image shown.

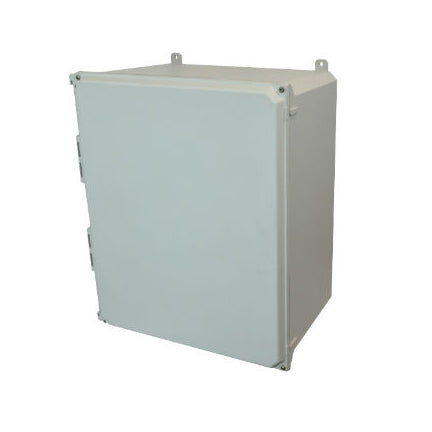

AMU2060 20x16x10 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount

Fiberglass enclosures compared to steel are both cheaper and easier to modify. These enclosures are non-corrosive and non-conductive. Polycarbonate viewing window used in applications where critical electronic equipment must be seen.

Additional Info

Related Documents: Not Available
Size in Inches: 20 inch
Part Number: AMU2060
Box Dimensions: 19.87" (H), 16.09" (W), 9.95" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 15
UPC Code: 85339963004
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AMU2060

AMU2060 20x16x10 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount

AMU Fiberglass Enclosure Lift-Off Screw Cover - Part: AMU2060

Allied Moulded enclosures have a 4-6 week lead time.

$501.58
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AMU Fiberglass Enclosure Lift-Off Screw Cover - Part: AMU2060

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Fiberglass enclosures compared to steel are both cheaper and easier to modify. These enclosures are non-corrosive and non-conductive. Polycarbonate viewing window used in applications where critical electronic equipment must be seen.

Additional Info
Related Documents: Not Available
Size in Inches: 20 inch
Part Number: AMU2060
Box Dimensions: 19.87" (H), 16.09" (W), 9.95" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 15
UPC Code: 85339963004
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
