PVC Fittings Online  |  SKU: AMU2060HW

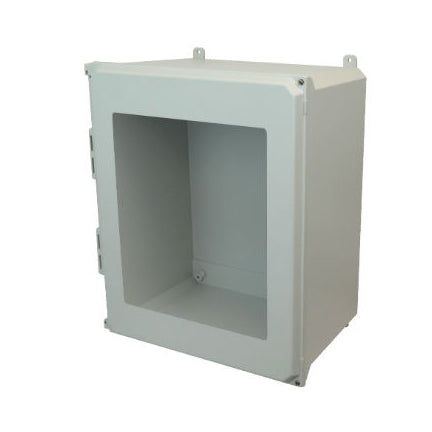

AMU2060HW 20x16x10 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window Foot Mount

AMU Fiberglass Enclosure Hinged Screw Cover Window - Part: AMU2060HW

Allied Moulded enclosures have a 4-6 week lead time.

$714.25
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied's new Ultragaurd formulation out performed materials used by three leading fiberglass enclosure manufactures. Allied comes out on top in: yellowing, change in gloss, discoloration and fiberbloom resistance. Especially well suited for extreme temperatures and corrosive environments These enclosures are non-corrosive and non-conductive.

Additional Info
Related Documents: Not Available
Part Number: AMU2060HW
Box Dimensions: 19.87" (H), 16.09" (W), 9.95" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 15
UPC Code: 85339963035
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
