PVC Fittings Online  |  SKU: AMU2060HWF

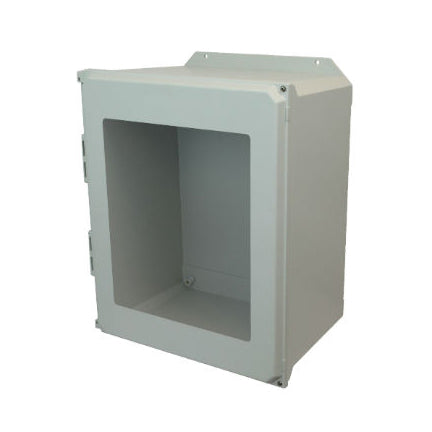

AMU2060HWF 20x16x10 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window Flange Mount

AMU Fiberglass Enclosure Hinged Screw Cover Window - Part: AMU2060HWF

Allied Moulded enclosures have a 4-6 week lead time.

$733.96
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
AMU fiberglass enclosures are the newest enclosures developed primarily for applications requiring JIC sized enclosures. Easily punched, drilled or sawed for simpler modifications. This enclosure has 316 stainless steel external hardware.

Additional Info
Related Documents: Not Available
Part Number: AMU2060HWF
Box Dimensions: 19.87" (H), 16.09" (W), 9.95" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 15
UPC Code: 85339963134
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
