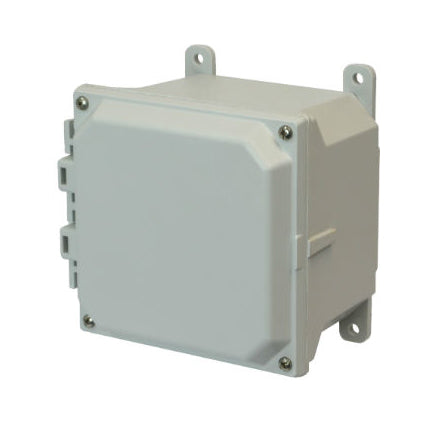

AMU664 6x6x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount
All fiberglass enclosures carry NEMA,UL, and CSA 4X ratings. Allied’s enclosures protect against salt, water, chemicals and more. Easily mounted to a pole, wall or machine.
Additional Info
Related Documents: Not Available
Size in Inches: 6 inch
Part Number: AMU664
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339952190
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
PVC Fittings Online | SKU:
AMU664
AMU664 6x6x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount
AMU Fiberglass Enclosure Lift-Off Screw Cover - Part: AMU664
Allied Moulded enclosures have a 4-6 week lead time.
$107.67
Unit price
/
Unavailable
Shipping calculated at checkout.
AMU664 6x6x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AMU Fiberglass Enclosure Lift-Off Screw Cover - Part: AMU664
Allied Moulded enclosures have a 4-6 week lead time.
Description
Description
All fiberglass enclosures carry NEMA,UL, and CSA 4X ratings. Allied’s enclosures protect against salt, water, chemicals and more. Easily mounted to a pole, wall or machine.
Additional Info
Additional Info
Related Documents: Not Available
Size in Inches: 6 inch
Part Number: AMU664
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339952190
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
