PVC Fittings Online  |  SKU: AMU664CCF

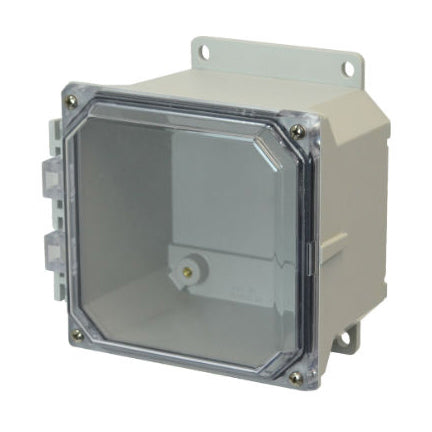

AMU664CCF 6x6x4 NEMA 4X Fiberglass Enclosure w/ Clear Lift-Off Screw Cover Flange Mount

AMU Fiberglass Enclosure CLEAR Lift-Off Screw Cover - Part: AMU664CCF

Allied Moulded enclosures have a 4-6 week lead time.

$120.54
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Featuring molded latch keepers, a tongue and groove seal design, and a flange design that can be retrofit to competition, Ultraline is the ultimate in fiberglass enclosures. Non-corrosive and non-conductive this enclosure is great for both indoor and outdoor applications.

Additional Info
Related Documents: Not Available
Part Number: AMU664CCF
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958154
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
