PVC Fittings Online  |  SKU: AMU664CCH

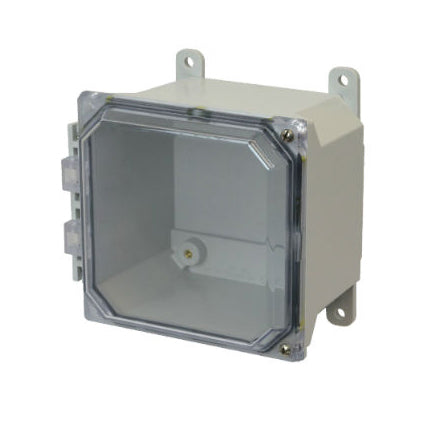

AMU664CCH 6x6x4 NEMA 4X Fiberglass Enclosure w/ Clear Hinged Screw Cover Foot Mount

AMU Fiberglass Enclosure CLEAR Hinged Screw Cover - Part: AMU664CCH

Allied Moulded enclosures have a 4-6 week lead time.

$128.51
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
A clear polycarbonate cover option is also available for instrumentation applications where critical electronic equipment must be visible and protected from the elements. AMU series enclosures have molded Hinge and latch keeper designed to eliminate wall penetrations. With multi-mounting capabilities this enclosure can be hung vertical or horizontally

Additional Info
Related Documents: Not Available
Part Number: AMU664CCH
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958031
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
