PVC Fittings Online  |  SKU: AMU664CCLF

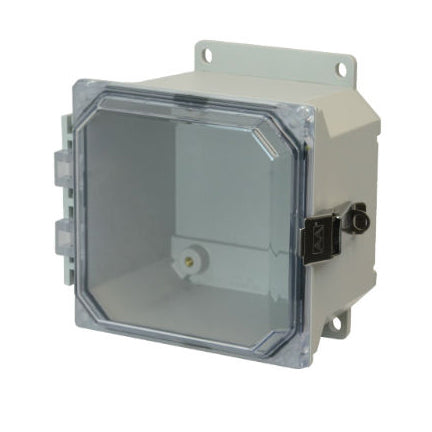

AMU664CCLF 6x6x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Clear Hinged Cover Flange Mount

AMU Fiberglass Enclosure Quick-Release Latch CLEAR Hinged Cover - Part: AMU664CCLF

Allied Moulded enclosures have a 4-6 week lead time.

$159.30
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This electrical enclosure is a part of Allied's AMU series. All Allied enclosures are regularly tested to ensure they meet the strict specifications of UL and CSA. These boxes are easy to mount on a wall, machine, or even a pole.

Additional Info
Related Documents: Not Available
Part Number: AMU664CCLF
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958215
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
