PVC Fittings Online  |  SKU: AMU664CCT

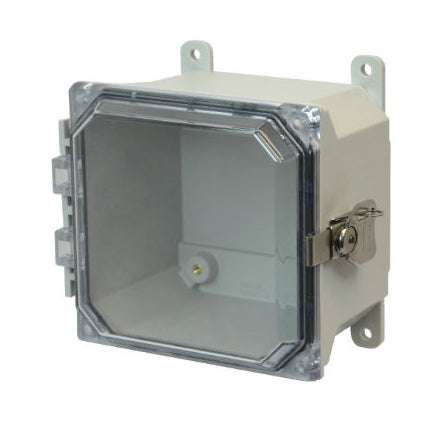

AMU664CCT 6x6x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Clear Hinged Cover Foot Mount

AMU Fiberglass Enclosure Twist Latch CLEAR Hinged Cover - Part: AMU664CCT

Allied Moulded enclosures have a 4-6 week lead time.

$155.76
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
These boxes are also easy to mount on a wall, machine, or pole. Their fiberglass construction makes them much less expensive than heavy and hard-to-use stainless steel enclosures. This product features a twist latch hinged clear cover and is part of Allied Moulded's AMU series.

Additional Info
Related Documents: Not Available
Part Number: AMU664CCT
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958093
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
