PVC Fittings Online | SKU: AMU664HF

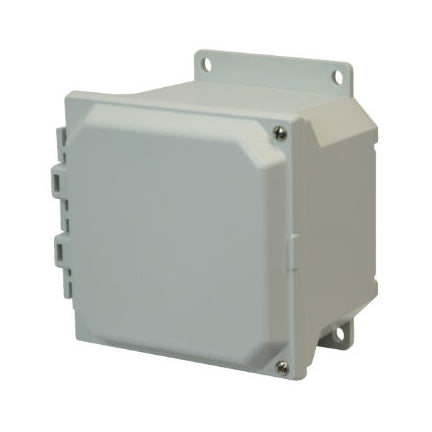

AMU664HF 6x6x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Flange Mount

Name: AMU664HF 6x6x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Flange Mount
Brand: PVC Fittings Online
SKU: AMU664HF
Price: 118.85 USD
Availability: InStock

AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU664HF

Allied Moulded enclosures have a 4-6 week lead time.

$118.85

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied's fiberglass enclosures resist extremes in temperature and are flame retardant resulting in a very capable product for both indoor and outdoor applications. Both corrosion and chemical resistant this box protects electrical and electronic components.

Additional Info

Related Documents: Not Available

Part Number: AMU664HF

Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 3

UPC Code: 85339958178

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
