PVC Fittings Online  |  SKU: AMU664HWF

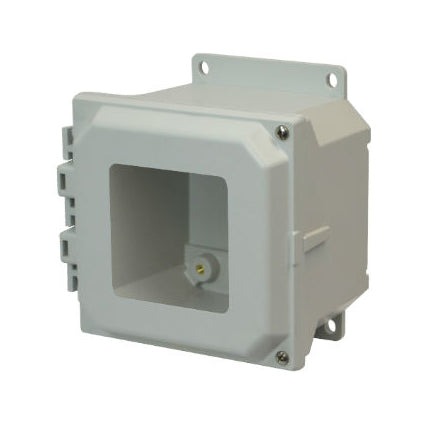

AMU664HWF 6x6x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window Flange Mount

AMU Fiberglass Enclosure Hinged Screw Cover Window - Part: AMU664HWF

Allied Moulded enclosures have a 4-6 week lead time.

$185.03
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Mounting options including an out of the box mounting flange or adjustable mounting feet to cover various configurations is standard for the AMU series enclosures. Built to enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications. Protects from dirt, dust, oil, water and more.

Additional Info
Related Documents: Not Available
Part Number: AMU664HWF
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958192
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
