PVC Fittings Online  |  SKU: AMU664TF

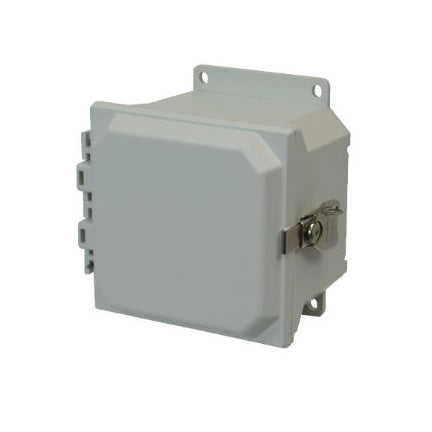

AMU664TF 6x6x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Flange Mount

AMU Fiberglass Enclosure Twist Latch Hinged Cover - Part: AMU664TF

Allied Moulded enclosures have a 4-6 week lead time.

$143.89
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied Moulded's maintenance-free fiberglass enclosures are designed to protect against the toughest elements in the harshest environments All Allied Moulded enclosures are tested regularly to ensure they meet UL and CSA specifications. Corrosion and chemical resistant.

Additional Info
Related Documents: Not Available
Part Number: AMU664TF
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958239
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
