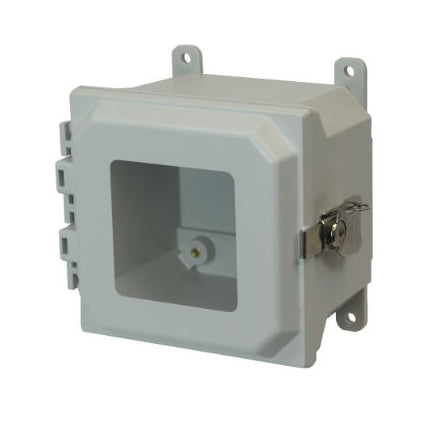

AMU664TW 6x6x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Window Foot Mount

AMU Fiberglass Enclosure Twist Latch Hinged Cover Window - Part: AMU664TW

Allied Moulded enclosures have a 4-6 week lead time.

$200.13
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied Moulded fiberglass enclosures are the best choice for your applications. UV and corrosion resistant this enclosure is great for both indoor and outdoor applications. This twist latch hinged enclosure has a viewing window used in applications where critical electronic equipment must be visible while protecting from dirt, water, oil and dust.

Additional Info
Related Documents: Not Available
Part Number: AMU664TW
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958109
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
