PVC Fittings Online  |  SKU: AMU864CCF

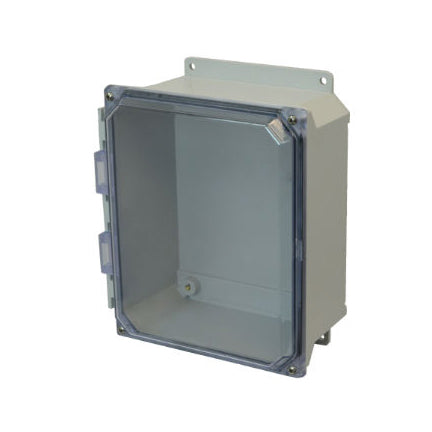

AMU864CCF 8x6x4 NEMA 4X Fiberglass Enclosure w/ Clear Lift-Off Screw Cover Flange Mount

AMU Fiberglass Enclosure CLEAR Lift-Off Screw Cover - Part: AMU864CCF

Allied Moulded enclosures have a 4-6 week lead time.

$127.21
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Ultraline is the newest series developed by Allied Moulded. Great for both indoor and outdoor applications. All Allied's enclosures are made of fiberglass reinforced polyester. Easy to mount and customize.

Additional Info
Related Documents: Not Available
Part Number: AMU864CCF
Box Dimensions: 8.05" (H), 6.27" (W), 4" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 4
UPC Code: 85339952510
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
